Basic Info

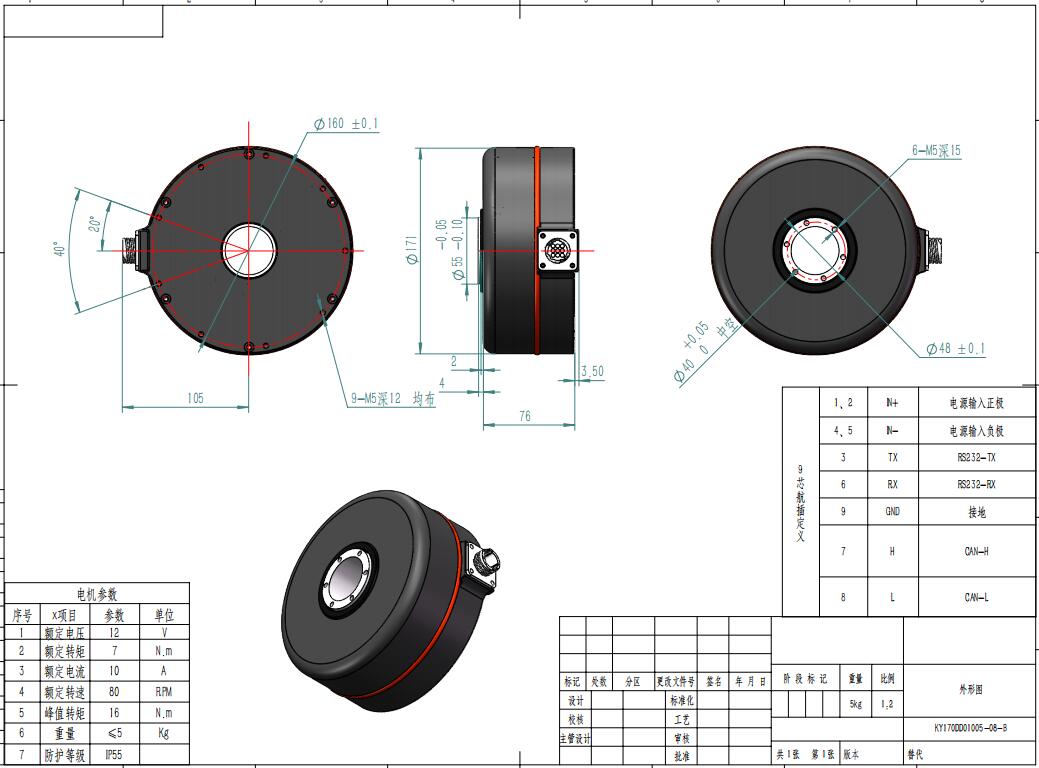

Model No.: KY170DD01005-08

Additional Info

Packaging: Standard export carton

Productivity: 3000pcs

Brand: Keya

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 500pcs/month

Certificate: ISO9001:2014, CE

HS Code: 85013100

Port: Qingdao,Shanghai

Product Description

The development of auto steering wheel servo motors for steering wheels was mainly targeted at precision agricultural machinery. It can complete agricultural machinery operations, achieve precise positioning, improve agricultural productivity, effectively use agricultural resources, and protect the ecological environment.

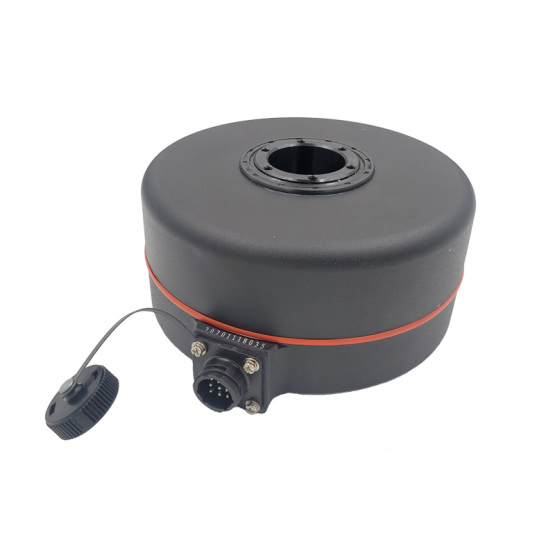

Steering wheel gear motor

Service temperature: - 25-55 ℃ (subject to ambient temperature);

Storage temperature: - 35-65 ℃ (subject to ambient temperature);

humidity: 5% - 90% RH, with condensation (25 ℃)

Protection grade: IP55, positive rain;

Insulation performance: input to casing DC600V, leakage current 0.07ma. The insulation resistance is more than 20 m Ω.

Three prevention requirements: meet the three prevention requirements (dustproof, moisture-proof and salt fog proof).

Vibration requirements: frequency 5Hz ~ 25Hz, amplitude 3mm, 0.09g 25Hz ~ 200Hz, amplitude 1.47mm, 116g. 30min horizontally, vertically and longitudinally.

Cooling mode: natural cooling

Applicable motor: DC12V/24V 50W;

Continuous current 10A, maximum peak current 15A

DC working power 7-32vdc;

Speed mode, position mode;

3. Service conditions

(1) power supply:

Rated working power supply: 12V/24VDC;

Limit power supply range: 7-32vdc;

It can provide instantaneous current overload capacity of 2 times of continuous current;

(2) feedback element:

Incremental encoder (conventional product), absolute value encoder;
